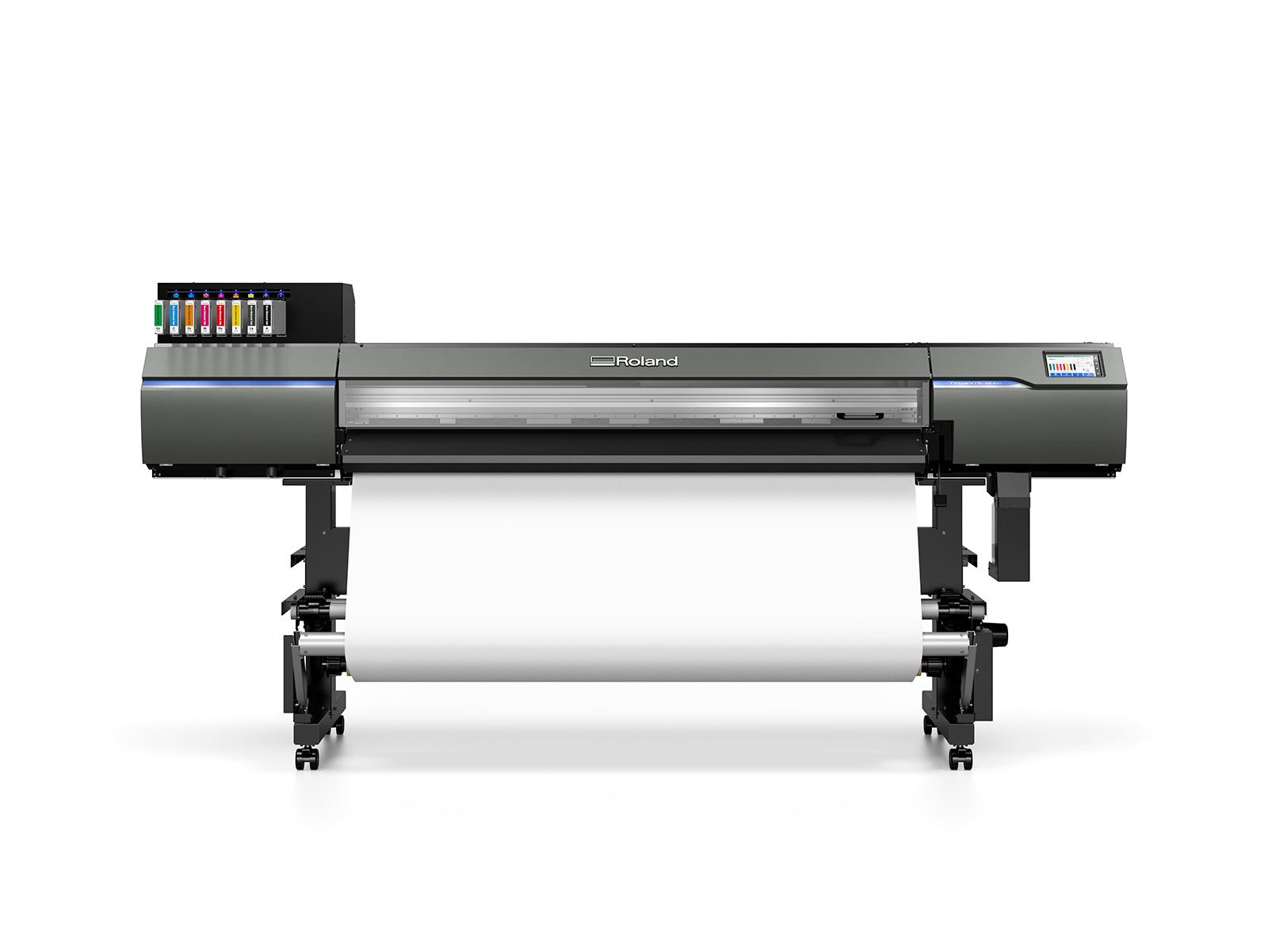

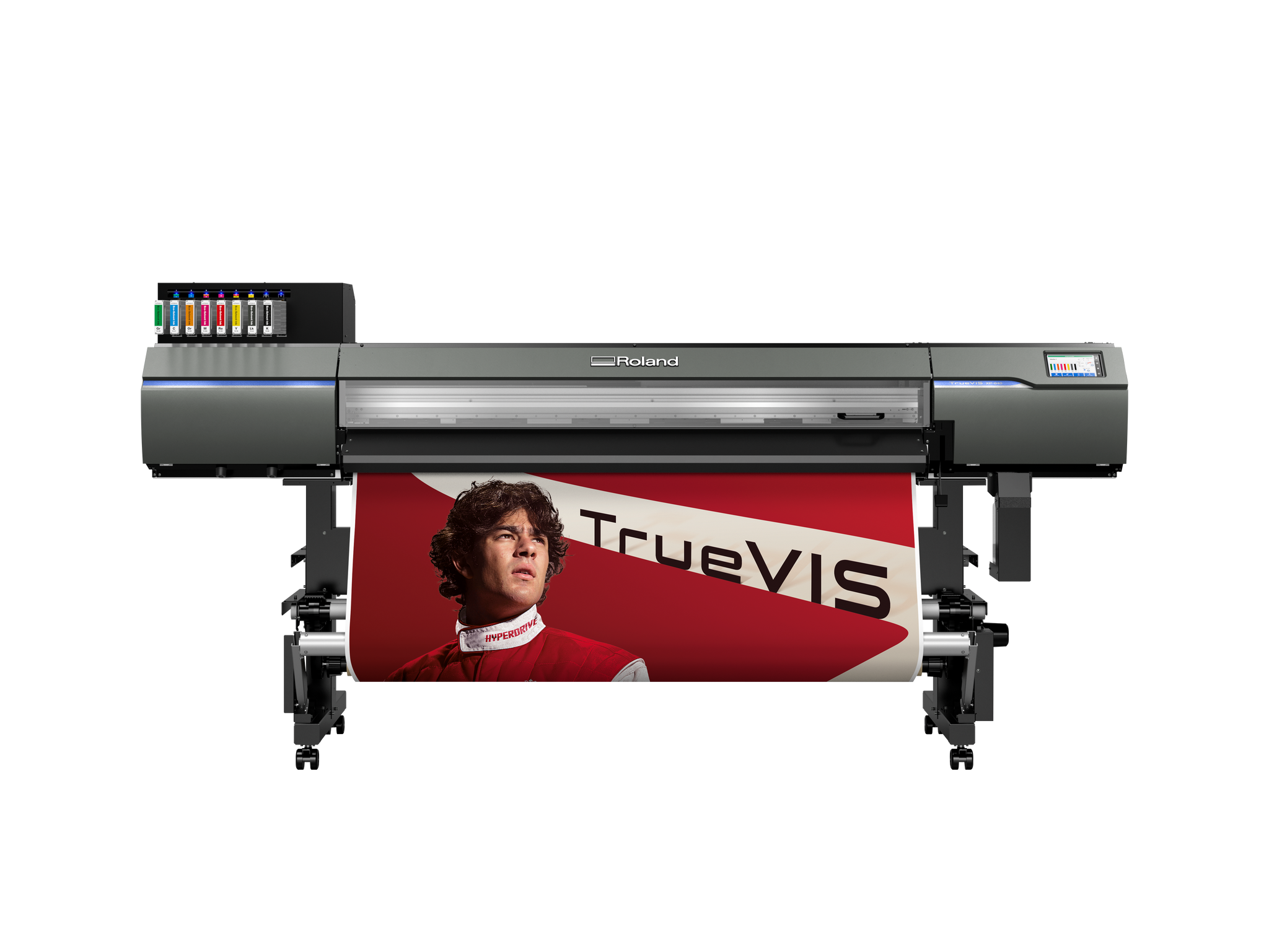

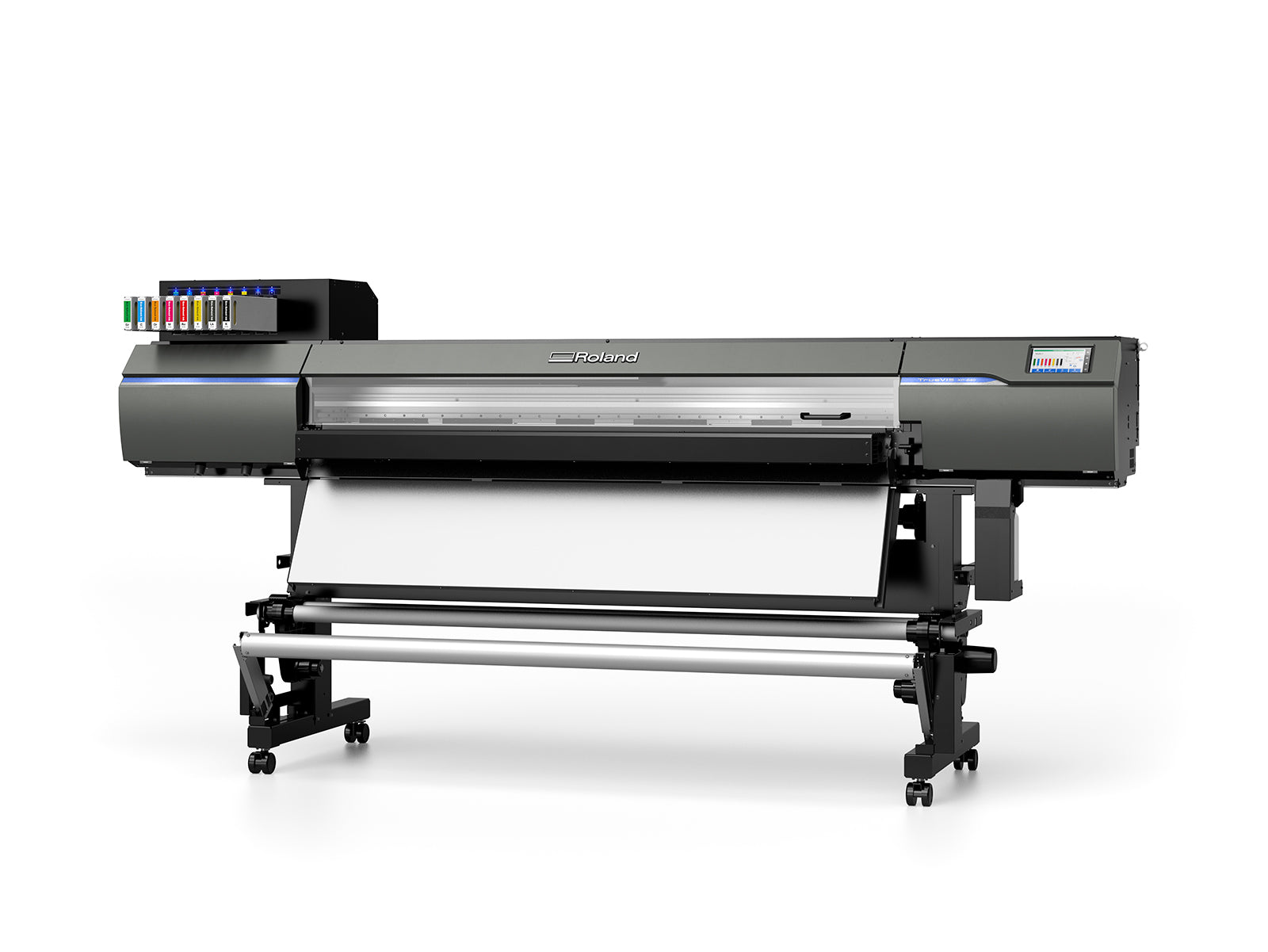

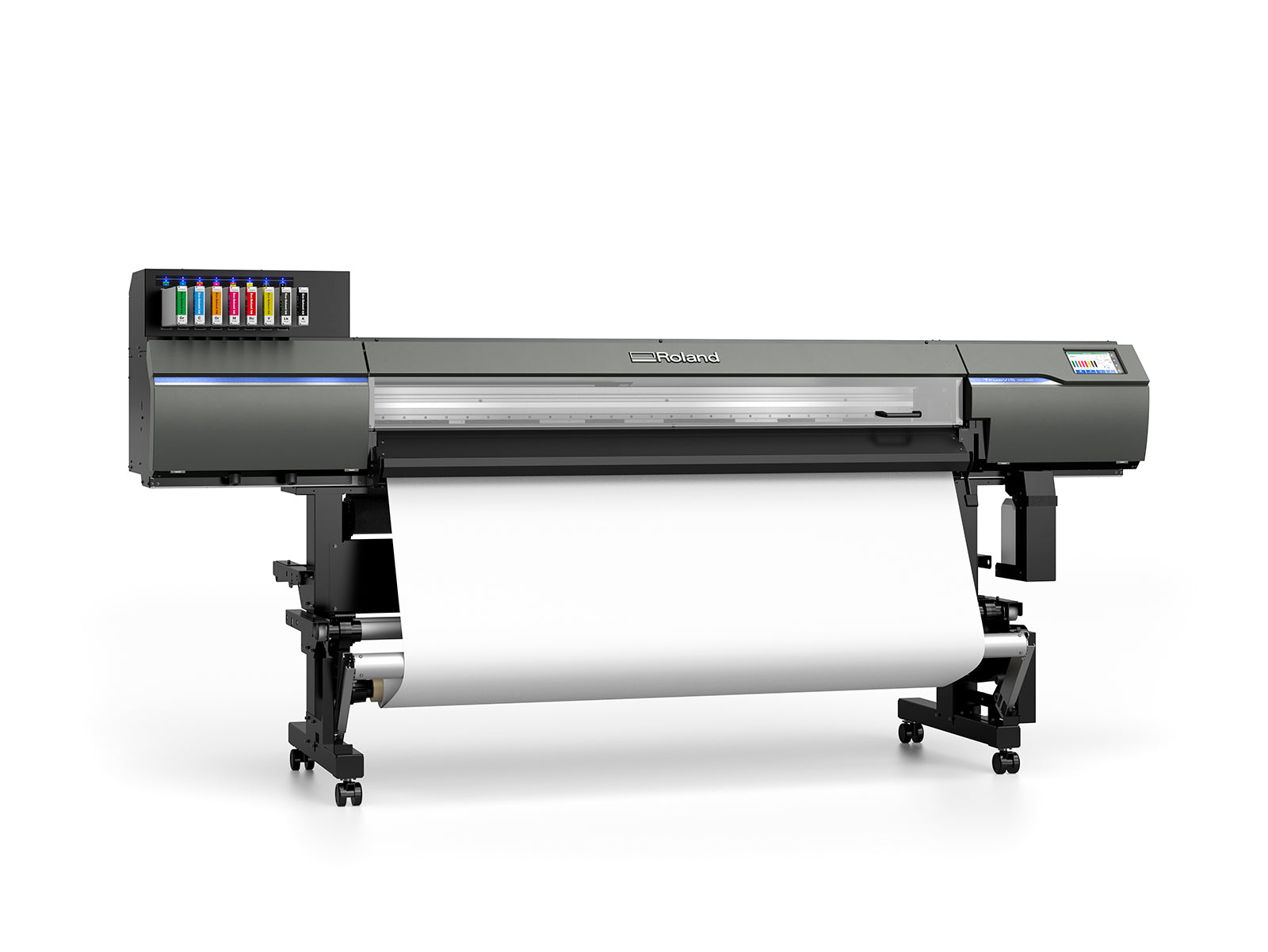

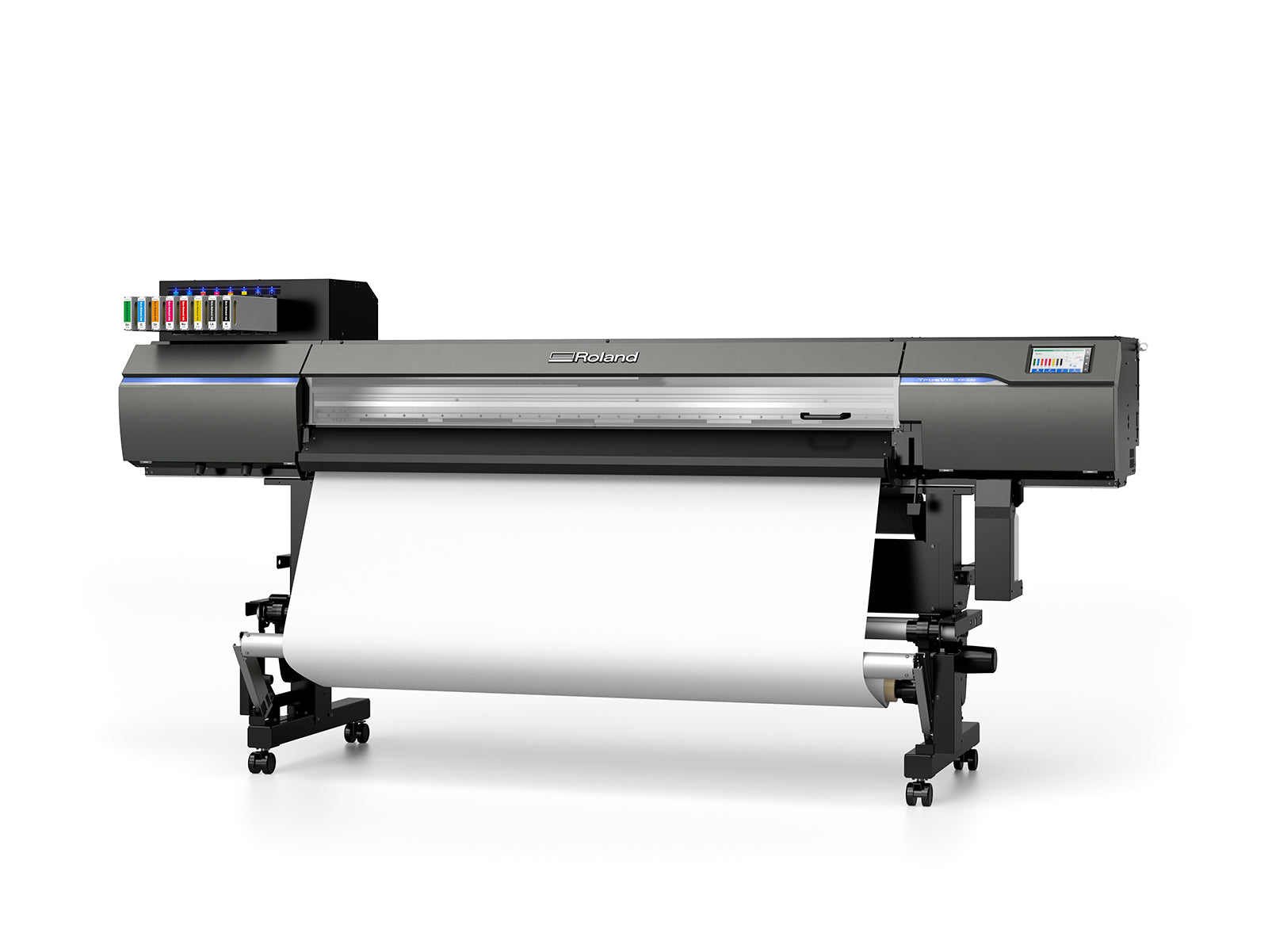

Roland - TrueVIS XP-640 Large-Format Eco-Solvent Printer
TrueVIS VG3 Large Format Inkjet Printer/Cutter
Need speed and productivity without compromising image quality? The new XP-640 delivers the best of both worlds — blazing print speeds paired with unparalleled TrueVIS color, vibrancy, and detail. Backed by Roland DG’s trusted reliability and customer support, this inkjet printer delivers the versatility and performance to handle anything that comes your way.
- Newly designed dual staggered printheads and high-speed data control maximize productivity while maintaining outstanding image quality.
- Twice as productive as Roland DG’s previous TrueVIS print-only model.
- Newly developed Red ink, along with CMYK, Light Black, Green, and Orange, for a significantly expanded color gamut.
- Unmatched reliability, cost-efficiency, and ease of use.
- Next-Gen Performance
Picture Perfect Productivity
Available in 8-color (CMYKLkOrGrRe) and dual CMYK configurations, the TrueVIS XP-640 offers the ultimate blend of image quality and productivity, allowing you to print higher-quality output faster than ever before. In billboard mode, the 8-color configuration allows for an extremely wide color gamut, while the 4-color setup produces vivid prints at a rapid 819 ft2/h.
Where Efficiency Meets Versatility
The XP-640 offers more than just high-volume production and superior image quality — it’s a powerhouse of innovation built to streamline your workflow. Equipped with advanced features designed to boost efficiency and enhance operations, this versatile printer excels across a wide range of applications.
Introducing Our Widest Color Gamut Yet

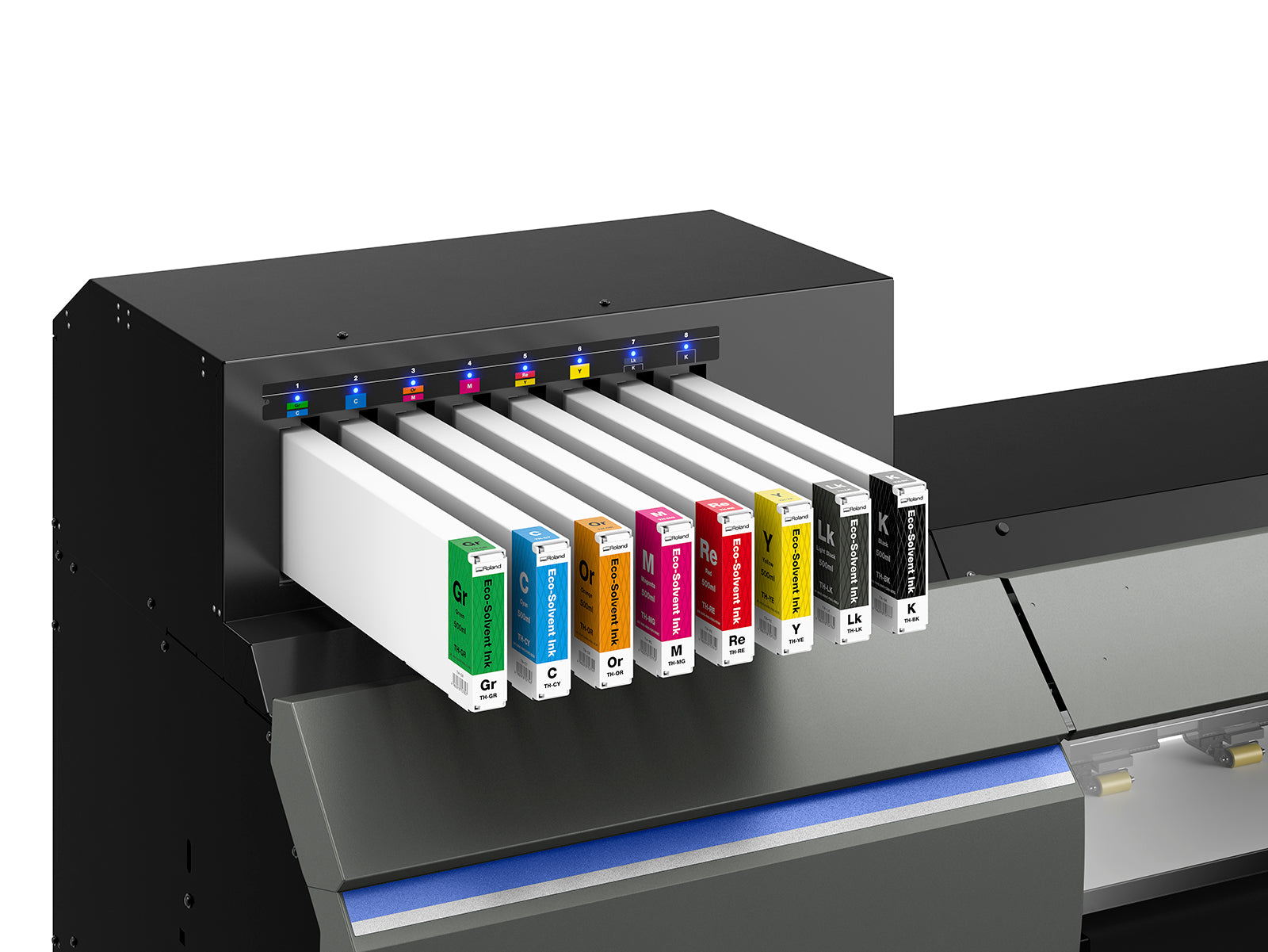

Maximize your creative expression with our vibrant red ink cartridge. Seamlessly integrating with CMYK, light black, orange, and green, this brand new addition takes TrueVIS color performance to the next level.
Achieve top-notch accuracy with red, the most crucial and frequently used color in sign graphics, and ensure your prints are as vivid and impactful as intended. Plus, corporate colors that were once difficult to replicate can now be reproduced with unmatched precision.
The Lowest Running Costs in Its Category
Reach new heights in cost-efficiency with innovative features that significantly reduce ink and operating costs — maximizing profitability on every job for your business. Perfect for high-volume production, the XP-640 uses new TH ink for more economical usage per milliliter and introduces the latest True Rich Color print setting to deliver the highest TrueVIS image quality while using less ink.
Unmatched Productivity & Presicion
Two larger staggered printheads eject finer ink droplets at higher densities for high-resolution output with fewer passes.
True VIS Quality Prints
The True Rich Color, preset combines vivid colors with neutral grays, smooth gradations, and natural skin tones to produce beautiful graphics.
A new red ink cartridge expands the color gamut, delivering unmatched vibrancy and maximum color expression.
Versatility
Efficient and accurate production of a wide range of applications with diverse media support capabilities.
Cost Performance
Low-cost TH inks and low ink consumption equals outstanding cost performance.
Usability For High-Productivity

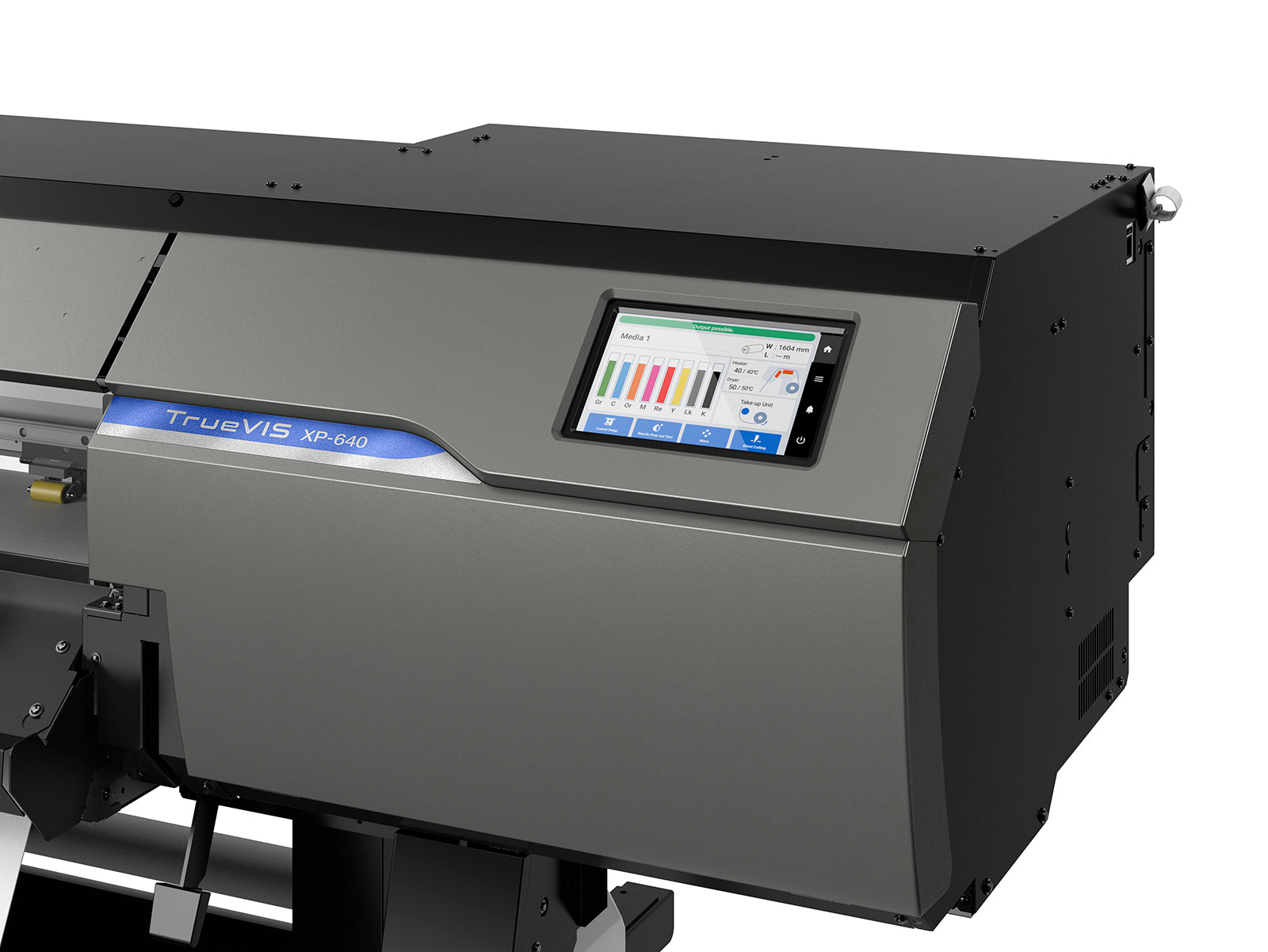

Equipped with perforated sheet cutting to reduce post-processing time and a 7-inch LCD panel for intuitive operation.
| Printing Method | Piezo ink-jet method |
|---|---|
| Media Width | 10.2 to 64 in. (259 to 1,625 mm) |
| Thickness | Max. 39.3 mil (1.0 mm) with liner |
| Roll outer diameter | Max. 9.8 in. (250 mm) |
| Roll weight | Max. 99 lb. (45 kg) |
| Core diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm) |
| Printing Width (*1) | Max. 63.5 in. (1,615 mm) |
| Ink Type | Eco-Solvent Ink (TH) 500 ml cartridge |
| Colors | Eight colors (Cyan, Magenta, Yellow, Black, Light Black, Green, Orange, and Red) Four colors (Cyan, Magenta, Yellow, and Black) |
| Printing Resolution (dots per inch) | Max. 1,800 dpi |
| Media Heating System (*2) | Print heater set temperature: 86 to 113 °F (30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C) |
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) |
| Power-saving Function | Automatic sleep feature |
| Rated Input | 100-120 / 220-240 Va.c. 50 / 60 Hz 8.9 / 4.5 A |
| Power Consumption | Approx. 1,180 W |
| Sleep Mode | Approx. 50 W |
| Acoustic Noise Level | 66 dB (A) or less |
| During Standby | 53 dB (A) or less |
| Dimensions (Width x Depth x Height) | 113.7 in. x 29.5 in. x 55.8 in. (2,886 mm × 748 mm × 1,415 mm) |
| Weight | 417 lb. (189 kg) |
| Environment | Temperature: 68 to 89.6 °F (20 to 32 °C), Humidity: 35 to 80% RH (no condensation) |
| Not Operating | Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80% RH (no condensation) |
| Included Items | Dedicated stand, power cord, media take-up unit, media holders, replacement blade for separating knife, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc. |
